Chatillon®
Chatillon Digital Force and Torque Gauges
Digital force gauges supply accurate load or torque measurements displayed in a high resolution dot matrix LCD.
dfs_rnd

CHATILLON® DFS II R ND Series features all the capabilities of the DFS II, but also includes a remote SLC dedicated to the unit offering the ability to test in locations where a fixed and integral load cell is impractical. The DFS II-R-ND allows the user to change SLC load cells adding the flexibility of having one base indicator and several load cells to meet different testing needs. Measurement accuracy is better than 0.1% full scale in integral load cell or dedicated remote models. The DFS II R ND offers wireless data transfer and comminicaton via integral Bluetooth. The high resolution dot matrix LCD ifull color display supports a variety of standard gauge functions.Loads are displayed in ozf, gf, lbf, kgf and N units. The display can be inverted and displayed results may be “hidden” from the operator. The DFS II R ND also offers password protection for gauge set ups.

dfs_r
CHATILLON® DFS II R Series digital force gauge has all the capabilities of the DFS II and includes an integral or non-dedicated remote SLC. The remote gives the user the ability to test in locations where a fixed and integral load cell is impractical. the DFS II R may be equipped with integral load cells or smart remote sensors for load measurement or torque measurement. Measurement accuracy is better than 0.1% full scale in integral load cell or dedicated remote models. The DFS II R offers wireless data transfer and comminicaton via integral Bluetooth. The high resolution dot matrix LCD ifull color display supports a variety of standard gauge functions.Loads are displayed in ozf, gf, lbf, kgf and N units. The display can be inverted and displayed results may be “hidden” from the operator. The DFS II R also offers password protection for gauge set ups.



dfs

CHATILLON® DFS II Series is compact and easy-to-use. The force gauge is designed for basic and complex applications. Ideal for handheld or test stand applications, the DFS II may be equipped with integral load cells or smart remote sensors for load measurement or torque measurement. Measurement accuracy is better than 0.1% full scale in integral load cell or dedicated remote models. The DFS II offers wireless data transfer and comminicaton via integral Bluetooth. The high resolution dot matrix LCD ifull color display supports a variety of standard gauge functions.Loads are displayed in ozf, gf, lbf, kgf and N units. The display can be inverted and displayed results may be “hidden” from the operator. The DFS II also offers password protection for gauge set ups.



dfe

CHATILLON® DFE II Series is compact, easy-to-use force gauge is designed for economy applications without compromising functionality. The DFE II Series is available with capacities from 2 lbf (10 N) to 500 lbf (2500 N) and features a measurement accuracy of better than ±0.25% FS.Measurements units that the DFX II supports are: ozf, gf, lbf, kgf and N. The high resolution dot matrix LCD ifull color display supports a variety of standard gauge functions.Loads are displayed in ozf, gf, lbf, kgf and N units. The display can be inverted and displayed results may be “hidden” from the operator.



dfx II

CHATILLON® DFX II Series is an economical digital force gauge ideal for measuring basic peak force.The DFX II is available in four capacities (10 lbf, 50 lbf, 100 lbf, 200 lbf) and features an integral load cell with a measurement accuracy of better than 0.3% FS. Measurements units that the DFX II supports are: ozf, gf, lbf, kgf and N. The rechargeable NiMH battery pack allows the DFX II to run for 70-100 hours continuously.



Mechanical Force Gauges
Analog force gauges provide basic tension, compression, load, and peak load measurement displayed on a large 2 I/4 inch dial that rotates 360 degrees for taring. These gauges are unidirectional with one end for tension and the other end for compression tests. A peak hold button holds the pointer at peak load.
dg DG Series ideal for force measurement applications up to 500 lbf, 250 kgf or 2500 N.The DG Series has a force measurement accuracy of better than 0.5% full scale and includes mechanical overload protection. The gauge is available in lbf, kgf and N units.
lg
LG Series is ideal for force measurement applications up to 100 lbf, 50 kgf or 500 N. Has a force measurement accuracy of better than 0.5% full scale and includes mechanical overload protection.
High Performance Test Stands

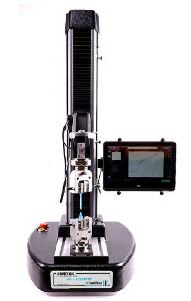

cs225

CS225

cs1100

CS1100

The Chatillon CS Series is an advanced force testing system optimized for production, quality control and engineering applications. NO personal computer is required; no propriary software is needed; and no knowledge of programming languages is required. Two options are avalible. Both the CS225 and the CS1100 provide you with easy-to-use, intuitive and straight-foward method for tensile testing, compression testing, sheer testing, flexural testing, peel testing or advanced multi-stage testing that conforms to ISO or ATSM testing procedures.

Test Setups
  • Load Limit
  • Displacement Limit
  • Distance Limit
  • Time Limit
  • Break / Rupture
  • Cycle or Loop
  • Multi-Stage (Define a custom test with multiple stages)
  • Tensile
  • Compression
  • Peel
Data Output
  • One Ethernet, one USB avalible
  • Save data directly to external drive, server or to USB flash drive
  • Save data locally in console memory (10 GB)
  • Interface to USB serial devices, e.g. barcode scanner/reader, printers, keyboards, hubs
  • Export data to CSV file
  • RS232 (input) for external ASCII command
Speed Accuracy
  • Better than 1% Full Scale
Distance Accuracy
  • +/- 0.25% of reading from 2% to 100% of max travel
Common Specifications
  • CLC series load sensors
  • Auto load cell recognition
  • Sensor Overload History Log
  • Last calibration date log
  • USB Output and Ethernet Output
  • Deflection compensation
  • Time and date stamp
  • User configurable grip load protection
  • Password protection
Test Modes
  • Tensile Mode (moves crosshead upward)
  • Compression Mode (moves crosshead downward)
  • Cycle Mode (allows you to cycle multiple tensile or compression modes and obtain the results for each mode)
  • Multi-Step Tests (Allows user to test with multiple steps and data gathering)
  • Height Mode
  • Average Mode
CS Specifications
  CS225 Series CS1100 Series
Load Capacity 225 lbf (1000 N) 1124 lbf (5000 N)
Maximum Crosshead Travel 19.7 in (500 mm) 31.5 in (800mm)
Throat Depth 7.1 in (180 mm) 5.9 in (150 mm)
Crosshead speed range at full load 0.001-50 in/min (0.01-1270 mm/min) 0.001-40 in/min (0.01-1016 mm/min)
Maximum return speed 50 in/min (1270 mm/min) 40 in/min (1016 mm/min)
Displayed displacement resolution 0.001 in (.01 mm)
Load cell force accuracy (non-dedicated) +/- 0.25% full scale of load cell capacity
Load cell force accuracy (dedicated) +/- 0.10% full scale of load cell capacity
Useable data sampling rate 1000 Hz
CLC Series Load Sensors
  Model ozf gf lbf kgf N
low CLC-250G 8 x 0.002 250 x 0.05 0.5 x 0.0001 0.25 x 0.0001 2.5 x 0.0005
low CLC-0002 32 x 0.005 1000 x 0.1 2 x 0.0002 1 x 0.0001 10 x 0.001
low CLC-04-5 72 x 0.01 2000 x 0.25 4.5 x 0.0005 2 x 0.0002 20 x 0.002
low CLC-0010 160 x 0.02 5000 x 0.5 10 x 0.001 5 x 0.0005 50 x 0.005
low CLC-0020 320 x 0.05 10,000 x 1 20 x 0.002 10 x 0.001 100 x 0.01
medium CLC-0050 800 x 0.1 25,000 x 2 50 x 0.005 25 x 0.002 250 x 0.02
medium CLC-0100 1600 x 0.2 50,000 x 5 100 x 0.01 50 x 0.005 500 x 0.05
medium CLC-0200 3200 x 0.5 100,000 x 10 200 x 0.02 100 x 0.01 1000 x 0.1
high CLC-0500 8000 x 1 250,000 x 20 500 x 0.05 250 x 0.02 2500 x 0.2
high CLC-1000 16000 x 2 500,000 x 50 1000 x 0.01 500 x 0.05 5000 x 0.5



Mid Performance Tester Add our Cycle Control to the Chatillon® LTCM-100 or 500 test stands and extend your control options!

cycle

Cycle Control
Cycle Control conveniently plugs into the tester footswitch jack, enhancing the economical LTCM Series tester by providing 3 additional modes:
  • In Manual Mode the tester will travel in the desired direction and stop at the preset mechanical limit
  • In Single Cycle Mode the tester will travel in the desired beginning direction and upon reaching the preset limit will reverse direction, to travel to the preset opposing limit and stop
  • Cycle Mode also functions with the load limit feature on Chatillon® DF Series Digital Force Gauges
Features
  • Manual Control
  • Single Cycle
  • Cycle
  • Lighted up/down travel indicator
  • Fast and Easy Installation
cc-2 Cycle Contol Works with any Chatillon® LTCM-100 or LTCM-500 tester having footswitch jack capability

Cycle Control installation is simple and requires no modifications to the tester



Basic Performance Testers

ltcm500

LTCM-500

ltcm100

LTCM-100
The Chatillon LTCM Series is made up of basic motorized testers. It is perfect for applications requiring an economical solution to tensile or compression testing. LTCM motorized test stands can include an optional foot switch for "hands-free operation" and control of crosshead movement.
Specifications
  LTCM-500 LTCM-100
Load Capacity 550 lbf (2500 N) 110 lbf (500 N)
Crosshead Speed 0.2 to 20 in/min (5 to 500 mm/min) 0.2 to 20 in/min (5 to 500 mm/min)
Speed Accuracy ±3% Unloaded ±3% Unloaded
Travel 29 inches (750mm) 15 inches (380mm)
Load Measurement Chatillon Force Gauges Chatillon Force Gages
Supply Voltage 110/230Vdc (switchable) 110/230Vdc (switchable)
Operating Temperature 40°F to 110°F (5°C to 45°C) 40°F to 110°F (5°C to 45°C)
Instrument Weight 100 lbs (45 kg) 39 lbs (18kg)
Manual Testers

mt500

MT-500

mt150

MT-150
Chatillon's MT Series of mechanical test stands are an ideal solution for tensile and compression testing. Combined with a Chatillon force gauge for an economical, manual testing system perfect for the production floor or lab. MT testers feature an innovative, modular design that maximizes working space while simplifying operation and maintenance. Testers may be equipped with a quick-action lever or precision handwheel for controlling crosshead speed and travel. MT testers can be bench mounted, wall mounted, or positioned horizontally. The MT series testers include hooks, compression plates, adapters, and gauge mounting hardware.Although manual testers are economical solutions for testing, travel speed variation can influence force measurement. When rate of travel is specified or critical, manual test stands are NOT recommended.
Specifications
  MT500 MT150
Load Capacity 550 lbf, 2500 N 150 lbf, 660 N
Loading Method Quick-Action Lever or Handwheel Quick-Action Lever or Handwheel
Travel Rates (Lever Actuator) 75 mm (3in) Per Revolution 75 mm (3in) Per Revolution
Travel Rates (Handwheel Actuator) 12 mm (0.5in) Per Revolution 12 mm (0.5in) Per Revolution
Column Heights (Standard) 750 mm (29.5 in) 750 mm (29.5 in)
Column Heights (Extended) 1000 mm (39.4 in) 1000 mm (39.4 in)
Column Heights (Ultra) 1500 mm (59 in) 1500 mm (59 in)
Maximum Stroke 150 mm (6 in) *longer strokes avalible 150 mm (6 in) *longer strokes avalible
Operating Temperature 40°F to 110°F (5°C to 45°C) 40°F to 110°F (5°C to 45°C)
Instrument Weight 20 lbs (9kg) 20 lbs (9kg)
Shipping Weight 25 lbs (12 kg) 25 lbs (12 kg)





Pneumatic Testers
tt

TT Tester a pneumatically operated tester for measuring break strength of electrical leads, terminals, connectors, wire wraps, etc. Ideal where intrinsic safety is required. Performs both tensile and compressive tests up to 562 lbf (2.5 kN). Has a 6-inch (15 cm) stroke and the hydro-check valve adjustment controls ram speed as low as 0.1 inch per minute (or up to 6-inch per minute) with a rapid return speed. Return speed is independent of the test stroke and can be instantaneous. Maximum air supply is 160 psig (11.2 Bar).



Medical Dynamometers
dmg DMG Series objectively measures manual muscle strength and functional task requirements. Available in 200 lbf and 500 lbf capacities, accurately measure (+0.5% FS) instantaneous push or pull forces generated by the test subject. A calibrated dial shows instantaneous force. A peak force switch freezes the pointer at the maximum force for simple identification and analysis.
mse100
MSE100-M Series is ideal for clinical or field muscle strength evaluations. Features a large, easy-to-read 2-1/4" analog dial (100 x 0.50 lbf) with tare ring. The gauge is uni-directional and displays force with an accuracy of better than 0.5% of full scale. A convenient peak hold switch, located on the front of the instrument, can be set to automatically freeze the dial measurement at the peak force applied by the patient.
Testing Software
1 Force Gauge Application Software
NEXYGEN DF Series Series Software



df2

Force Measurement Application Software
DF2 Wedge Software

  • Free download
Sensors
dfs_r Force Sensors, Loadcells
series_II_torque
Torque Sensors
