Mark-10 ®
Mark-10 Gauges
series7 Series 7 Force Gauges
  • High-speed 14,000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs
  • Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
  • Password protection, configurable for individual keys and calibration
  • Sample break detection with auto functions, including stopping movement on the ESM301(L) test stand
series5
Series 5 Force Gauges
  • 7,000 Hz sample rates
  • USB output, RS232 + 0.1% accuracy
  • 1000 data point memory, statistics
  • Password lockable keys
  • Setpoint functions
  • Reversible display
  • Backlit display

5i

pta

Series 5i Universal Force/Torque Gauge
  • Interchangeable remote force and torque sensors
  • Mitutoyo, RS-232, USB, and analog outputs
  • Torque and force capacities are dependent on sensor being used.
    • Force: 0.12 to 750,000lbF (0.5N to 4,000kN)
    • Torque 10ozFin to 40,000lbFft (7Ncm to 57,000Nm)
  • Full computer control capabilities

PTA Adapter- We can adapt any of your loadcells to fit a Mark-10 gauge


Series 4 Series 4 Force Gauges
  • 3,000 Hz sample rates
  • USB output, RS232 + 0.2%, +/- 1 digit accuracy
  • 50 data point memory, statistics
  • Setpoint functions
  • Reversible display
  • Backlit display
series3

Series 3 Force Gauges

  • 2,000 Hz sample rates
  • USB output
  • Setpoint functions
  • Reversible display
  • Backlit display

series3i

pta

Series 3i Universal Force/Torque Gauge
  • Interchangeable remote force and torque sensors
  • USB Outputs
  • High-speed 2,000 Hz sampling rate
  • Programmable set points with pass/fail indicators
  • Force capacity: from 250g to 10,000 lb
  • Torque capacity: from 10 ozin to 5000 lbin

PTA Adapter- We can adapt any of your loadcells to fit a Mark-10 gauge


series2 Series 2 Force Gauges
  • Compact size
  • 3 selectable units of measurement
  • ±0.5% of full scale (accuracy)
  • Large, backlit graphic display with auto-dimming

MG Series MG Force Gauges
  • Compact size
  • Selectable units of measurement
  • ±0.5% accuracy
  • Reversible display

Coefficient of Friction (COF) Gauge

cof

M5-2-COF Coefficient of Friction (COF) Gauge
  • Calculates static and kinetic coefficients of friction
  • USB, RS-232, Mitutoyo, and analog outputs
  • Configurable sled weight (100 - 1000 g)
  • 1,000-point data memory with statistics and outputs

Torque Gauges
7i

Series 7i Universal Force/ Torque Indicator

  • Interchangeable force and torque sensors
  • USB, RS-232, Mitutoyo, and analog outputs
  • Sampling rate of 14,000 Hz
  • Programmable set points, with indicators and outputs
  • Password protection for individual keys and calibration
  • Break detection

5i

Series 5i Universal Force/ Torque Indicator
  • Interchangeable remote torque and force sensors
  • Mitutoyo, RS-232, USB, and analog outputs
  • Full computer control capabilities

series3i

pta

Series 3i Universal Force/Torque Indicator
  • Interchangeable remote force and torque sensors
  • USB Outputs
  • High-speed 2,000 Hz sampling rate
  • Programmable set points with pass/fail indicators
  • Interchangeable force and torque sensors

PTA Adapter- We can adapt any of your loadcells to fit a Mark-10 gauge


tt03 TT03 Torque Gauges
  • Dedicated remote torque sensor with Jacobs chuck
  • Compact size
  • ±0.5% accuracy
  • Capacities from 10 ozin to 100 lbin






cta Series TT01
Cap Torque Testers

  • RS-232 and Mitutoyo data outputs
  • Outstanding overload protection
  • Simple hand operation
  • ±0.3% accuracy
  • Capacities from 12 - 100 lbin.
tt03c TT03C
Cap Torque Gauges

  • Simple hand operation
  • Portable design
  • Dedicated remote torque sensor with Jacobs chuck
  • ±0.5% accuracy
  • Capacities from 12 - 100 lbin
tt02 TT02
Torque Tool Testers

  • Accepts wide range of torque tools
  • Multiple mounting configurations possible
  • ±0.3% accuracy
  • RS-232 & Mitutoyo outputs and analog outputs
  • Capacities from 12 - 100 lbin
  • Can be used on motorized torque wrenches with optional rundown fixture
tt05 TT05
Universal Torque Tester
  • Can be used for a range of applications up to 100 lbFin [11.5 Nm]
  • USB, RS-232, Mitutoyo, and analog outputs
  • 1,000-point data memory with statistics and outputs
  • 5 selectable units of measurement
  • Capacities from 12-100 lbin
  • Automatic output, data storage, and zeroing upon sample break helps automate testing processes
Manual Test Stands
tsa TSA750 / TSA750H Force, lever
  • Force measurement to 750 lb
  • 6" of travel
  • Modular design
tsb TSB100 Force, lever
  • Force measurement to 100 lb
  • 6" of travel
  • Modular design
es10 ES20 / ES10 Force, lever or hand wheel
  • Force measurement to 100 lb
  • Compact size
  • Low cost
  • 9" of travel
es30 ES30 Force, hand wheel
  • Force measurement to 200 lb
  • Convenient side-mounted hand wheel
  • 13" of travel
es05 ES05 Force, lever
  • Force measurement to 30 lb (compression only)
  • Compact size
  • Low cost
  • 1.5" of travel
tsf TSF / TSFH Force, hand wheel
  • Force measurement to 1,000 lb
  • Convenient side-mounted hand wheel
  • 4" of travel, Modular design
tsc_tsch TSC / TSCH Force, hand wheel
  • Force measurement to 1,000 lb
  • Precision Acme screw and nut
  • 3.5" of travel
  • Modular design
Motorized Test Stands

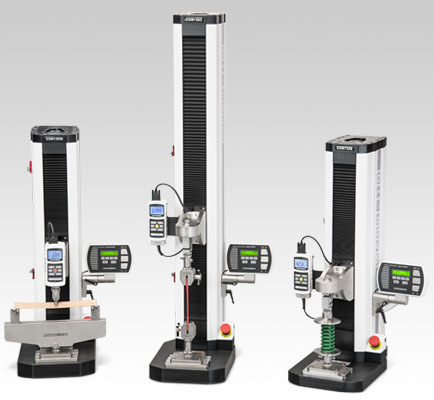

esm1500 ESM1500 With Optional PC Control

New from Mark-10, the ESM1500 is a highly configurable single-column force tester for tension and compression measurement applications up to 1,500 lbF (6.7 kN). Suitable for laboratory and production environments, the ESM1500 may be used with an indicator-load cell combination or with a force gauge. Sample setup and fine positioning are a breeze with available FollowMe™ force-based positioning - using your hand as your guide, push and pull on the load cell or force gauge to move the crosshead at a dynamically variable rate of speed.

  • Force measurement to 1,500 lbF (6.7 kN)
  • 32" of travel
  • Full PC control
  • Stop / cycle at force, travel, or limit switch
  • Overload protection
esm301 ESM301 / ESM301L
  • Force measurement to 300 lb
  • 11.5" / 18" of travel
  • Full PC control
  • Stop / cycle at force, travel, or limit switch
  • Overload protection
  • Travel indication
  • Programmable travel limits
  • Break detection
  • Load holding
  • Preload/sample touch
esm ESM
  • Force measurement to 200 lb
  • Remote control operation
  • 13" of travel
  • Removable base
esmhdc ESMH-DC
  • In addition to ESMH: PC control
  • Stop / cycle at force or limit switch
  • Overload protection
esmh ESMH
  • Force measurement to 50 lb
  • High speed range
  • 13" of travel
  • Integrated limit switches
tsfm500/dc TSFM500-DC / TSFM500H-DC
  • In addition to TSFM500: PC control
  • Stop / cycle at force or limit switch
  • Auto return
  • Expanded speed range
  • Now available up to 1000 lb capacity. Contact us

tsfm500 TSFM500 / TSFM500H
  • Force measurement to 500 lb
  • Remote control operation
  • 4" of travel
  • Removable base
Torque Test Stands
tst TST / TSTH (manual) Torque, hand wheel
  • Torque measurement to 100 lbin
  • Convenient side-mounted hand wheel
  • Angle indication
  • Modular design
tstm TSTM / TSTMH
  • Torque measurement to 100 lbin
  • Remote control operation
  • Angle indication
  • Modular design
tstmdc TSTM-DC /TSTMH-DC
In addition to TSTM:
  • Full PC control
  • Digital angle indication
  • Stop/cycle at angle or torque
  • Expanded speed range
  • Overload protection
Wire Terminal Pull Testers
wt3-200 Wire Terminal Pull Tester WT3-200
  • Designed to measure the pull-off force of wire and tube terminations
  • Up to 200 lbF (1000 N) pull force
  • Adjustable wire terminal grip contains multiple slots for wire diameters up to AWG 3 (0.25 in [6.3 mm])
  • On board storage for up to 1000 readings
  • USB, RS-232, Mitutoyo (Digimatic), and analog outputs
  • Mounting holes for bench mounting

Sensors
set1

set2

Sensors for the Series 5i and 3i includes:

R01 S-beam force sensors, tension and compression
R02 Miniature button force sensors, compression only
R03 Inline force sensors, compression and tension testing
R04 Miniature S-beam force sensors, tension and compression
R05 Fully enclosed smart, push and pull

R50 Universal torque sensors
R51 Universal torque sensors with interchangeable attachments
R52 Tool calibration torque sensors
R53 Closure torque sensors
R54 Wrench extension torque sensors

PTA Adapter We can adapt ANY of your loadcells to fit a Mark-10 gauge



Software
measur MESURgauge
Plots load vs. time or load vs. travel, Calculates statistics, One-button data export to Excel, Customizable test setups, reports, and report templates, Compatible with any force or torque gauge with RS-232 output.
winwedge WinWedge
Transfers data to any Windows program, Provides full two-way I/O for data collection and instrument control, Collects real-time data on multiple serial ports simultaneously
lite MESURlite
A basic data collection program that tabulates continuous or single point data from a gauge. Data saved in the gauge’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.



Accessories
accessories Handle Grips

Communication Adapters

Tabletop Stand for BGI/MGT

Set Point Cable

AC Adapters

Competitor Gauge Mounting Kits

Test Stand Mounting Kit for SS/SSM Sensors

Tabletop Mounting Kits for Torque Sensors

Output Cables

Hi/Lo Limits Indicator

Axial Compensator

Rechargeable Battery

Statistical Printer

Torque Test Stand Mounting Kits for STH & STE

Test Stand Mounting Kit for BGI/MGT
