Grips, Fixtures, and Attachments Grips and fixtures for many of the force gauge brands are interchangeable. The style of grips is usually connected with 10-32 or 5/16-18 thread connections. Lloyd grips and fixtures have a special coupling method for easy change over. We carry adapters (listed below) so that the force gauge grips and Lloyd style grips may be used with force testers. In some cases, force gauge grips can be used with Lloyd material testers.
Chatillon Grips and Fixtures
Adapters

Chatillon® Gauge Adapters
Force Gauge Adapters

The following matrix should be used to determine whether or not a Gauge Adapter is required for fitting the Chatillon® force gauge to a Chatillon Tester. Listed inside each cell is the applicable part number for the required adapter.

Force Gauge Adapter Matrix

Gauge Model MT150 MT500 TT LTCM-100 TCM201 TCD200 TCD500
LG SPK-MT-0001 SPK-MT-0001 NC002582 Direct Connect SPK-FM200-019 SPK-FM200-019 Not Compatible
DG SPK-MT-0005 SPK-MT-0005 SPK-DG-TT Not Compatible SPK-DG-TCM SPK-DG-TCM Not Compatible
DFE SPK-MT-0001 SPK-MT-0004 NC002582 Direct Connect SPK-FM200-019 SPK-FM200-019 Direct Connect
E-DFE SPK-MT-0001 SPK-MT-0004 NC002582 Direct Connect SPK-FM200-019 SPK-FM200-019 Direct Connect
DFS SPK-MT-0001 SPK-MT-0004 NC002582 Direct Connect SPK-FM200-019 SPK-FM200-019 Direct Connect
DFS-R SPK-MT-REMOTE

SPK-MT-REMOTE
(see note)

NC002582
NC000300
(see note)

NC000300 NC000300 NC000300

NC000300
(see note)

DFM SPK-MT-0003 SPK-MT-0003 NC002582 SPK-LTCM-DFIS NC000985 NC000985 Not Compatible
DFIS SPK-MT-0002 SPK-MT-0002 NC002581 SPK-LTCM-DFIS SPK-FM200-015 SPK-FM200-015 Not Compatible
DFT SPK-MT-0001 SPK-MT-0004 NC002582 Direct Connect SPK-FM200-018 SPK-FM200-018 Not Compatible
DFGS SPK-MT-0001 SPK-MT-0001 NC002582 Direct Connect SPK-FM200-019 SPK-FM200-019 Not Compatible
DFGS-R SPK-MT-REMOTE SPK-MT-REMOTE

NC002582
NC000300

NC000300 NC000300 NC000300 Not Compatible
DFA SPK-MT-0001 SPK-MT-0001 NC002582 Direct Connect SPK-FM200-019 SPK-FM200-019 Not Compatible
DFA-R SPK-MT-REMOTE SPK-MT-REMOTE

NC002582
NC000300

NC000300 NC000300 NC000300 Not Compatible

Note: SPK-MT-REMOTE and NC000300 have a load capacity limit of 225 lbf (1000N) Do NOT exceed.

Chatillon® Thread Adapters

Listed are the various Chatillon® accessories available for our mechanical and digital force gauges and torque gauges.

Male to Male Adapters These adapters have two male threads   Female to Female Adapters These adapters have two female threads
Size Size Part No. Size Size Part No.
#10-32 1/4-28 17039 #10-32 1/4-28 17160
#10-32 5/16-18 NC000686 #10-32 5/16-18 17056
1/4-28 5/16-18 NC000296 #10-32 1/4-28 17057
1/2-20 5/16-18 17162 5/16-18 1/4-28 13048
Metric Adapters These adapters have metric threads and/or imperial threads Female to Male Adapters These adapters have one female thread and one male thread
Size Size Part No. Size Size Part No.
M6F M12F ADT/0275/00 #10-32F 5/16-18M P-10020
M6F #10-32F NC002652 #10-32M 5/16-18F P-10269
M12F 5/16-18F NC002652
M12F #10-32F ADT/0278/00
Eye-End Adapters These adapters mate with a 5/8" Eye End Adapter used with TG Series grips and fixtures
Size Size Part No.
#10-32M 5/8" Eye End ADT/0112/00
#10-32F 5/8" Eye End ADT/0154/00
1/4-28M 5/8" Eye End ADT/0113/00
1/4-28F 5/8" Eye End ADT/0155/00
1/4-20M 5/8" Eye End ADT/0114/00
1/4-20F 5/8" Eye End ADT/0156/00
5/16-18M 5/8" Eye End ADT/0115

Chatillon® Force Gauges
Accessories - Test Stand Adapters

Listed are the various Chatillon® accessories available for our mechanical and digital force gauges. Use these adapters when mounting the gauge to the Chatillon tester specified.

Gauge Tester Part No. Comments
LG Series MT150 Series SPK-MT-0001 May be specified as part of tester.
LG Series MT500 Series SPK-MT-0001 May be specified as part of tester.
LG Series LTCM-100 Series SPK-MT-0001
LG Series TCM Series SPK-FM200-019
LG Series TCD Series SPK-FM200-019 Not Compatible
LG Series TT Series - May be specified as part of tester.
DG Series MT150 Series SPK-MT-0005 May be specified as part of tester.
DG Series MT500 Series SPK-MT-0005 Not Compatible
DG Series LTCM-100 Series -
DG Series TCM Series SPK-DG-TCM/TCD
DG Series TCD Series SPK-DG-TCM/TCD
DG Series TT Series SPK-DG-TT May be specified as part of tester.
DFE Series MT150 Series SPK-MT-0001 May be specified as part of tester.
DFE Series MT500 Series SPK-MT-0004 No Adapter Required
DFE Series LTCM-100 Series Direct Included with tester.
DFE Series TCM Series SPK-FM200-019 Included with tester
DFE Series TCD Series SPK-FM200-019 Included with tester
DFE Series TT Series NC002583 May be specified as part of tester.
DFS Series MT150 Series SPK-MT-0001 May be specified as part of tester.
DFS Series MT500 Series SPK-MT-0004 No adapter Required
DFS Series LTCM-100 Series Direct Included with tester
DFS Series TCM Series SPK-FM200-019 Included with tester
DFS Series TCD Series SPK-FM200-019 Included with tester
DFS Series TT Series NC002582
DFS-R Series MT150 Series
DFS-R Series MT500 Series
DFS-R Series LTCM-100 Series NC000300
DFS-R Series TCM Series NC000300
DFS-R Series TCD Series NC000300
DFS-R Series TT Series

Chatillon® Adapters for TDC 110, 225, 1100 Testers Using TLC Load Cells

Low Capacity Medium Capacity High Capacity

SPK-TLC-001

  • NC003141 Grip Pin, Aluminum
  • N003139 5/8" Eye End with #10-32 Thread, Aluminum
  • NC003140 Locking Rings (2ea), Aluminum
  • NC003030 Spanner Wrench

SPK-TLC-002

  • NC000612 Grip Pin, Stainless Steel
  • NC003137 5/8" Eye End with 1/4-28M Thread, Stainless Steel
  • NC003031 Locking Rings (2ea), Stainless Steel
  • NC003030 Spanner Wrench

SPK-TLC-003

  • NC000612 Grip Pin, Stainless Steel
  • NC003138 5/8" Eye End with 1/2-20M Thread, Stainless Steel
  • NC003031 Locking Rings (2ea), Stainless Steel
  • NC003030 Spanner Wrench







Grips and Fixtures
adhesive Adhesives:
  • GF-8 Series, Circular Adhesive Plates (562 lbf,2.5 kN)
  • TG136 Series, Shouldered Plates (1124 lbf, 5 kN)

Contact us for more information!

bend Bending and Flexural Testing:
  • GF-54 Series, 3-Point Bend Jig (56 lbf, 250N)
  • TG18 Series, 3-Point Bend Jig (1124 lbf, 5 kN)

Contact us for more information!

chuck Chucks (Jacobs)
  • GF-51 Series, 5/32" Drill Chuck (20 lbf, 100 N)
  • GF-52 Series, 1/4" Drill Chuck (20 lbf, 100 N)

Contact us for more information!

friction Coefficient of Friction (COF)
  • TG19 Series, COF Sliding Friction Jig (20 lbf, 100 N)
  • TG35 Series, COF Sliding Friction Jig (20 lbf, 100 N)

Contact us for more information!

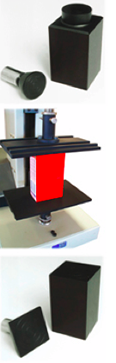

platen Compression Platens
  • 17109 Series, Force Gauge Platen (225 lbf, 1 kN)
  • 17012 Series, Force Gauge Platen (562 lbf, 2.5 kN)
  • TG87 Series, Circular Low Force Platen (112 lbf, 500 N)
  • TG162 Series, Circular Compression Jig with Linear Guides (562 lbf, 2.5 kN)
  • TG37 Series, Rectangular Platen (112 lbf, 500 N)
  • TG86 Series, Rectangular Low Force Platen (112 lbf, 500 N)
  • TG36 Series, Rectangular Platen (1124 lbf, 5 kN)

Contact us for more information!

food Food Texture Analysis
  • Base Table (225 lbf, 100 kgf, 1 kN)
  • Back Extrusion Cell (112 lbf, 50 kgf, 500 N)
  • Bend Jig, 3-point (225 lbf, 100 kgf, 1 kN)
  • Butter Cutting Jig (112 lbf, 50 kgf, 500 N)
  • Crisp Fracture Support Jig (112 lbf, 50 kgf, 500 N)
  • Comparative Dough Stickiness Jig (112 lbf, 500 N)
  • Dough Preparation Set (112 lbf, 50 kgf, 500 N)
  • Gluten Dough Extensibility Jig (112 lbf, 50 kgf, 500 N)
  • Knife-Edge Probe Set (112 lbf, 50 kgf, 500 N)
  • Kramer-Type Shear Cell (225 lbf, 100 kgf, 1 kN)
  • Magnus Taylor Puncture Probe Set (450 lbg, 200 kgf, 2 kN)
  • Ottawa Forward Extrusion Cell (225 lbf, 100 kgf, 1 kN)
  • Pea Test Fixture (11 lbf, 5 kgf, 50 N)
  • Spaghetti Noodle Testing Fixture (112 lbf, 50 kgf, 500 N)
  • Volodkevitch Bite Set (112 lbf, 50 kgf, 500 N)
  • Warner Bratzler Shear Blade Set (112 lbf, 50 kgf, 500 N)

Contact us for more information!

peel Peel Fixtures
  • TG38 Series, 90-degree Peel Fixture (45 lbf, 200 N)
  • TG580 Series, Climbing Drum Peel Fixture (562 lbf, 2.5 kN)

Contact us for more information!

pneumatic Pneumatic Grips
  • TG420 Series, Pneumatic Vice-Action Grip (112 lbf, 500 N)
  • TG412 Series, Pneumatic Vice-Action Grip (1124 lbf, 5 kN)

Contact us for more information!

probe Probes
  • FG/BA Series Ball probes
  • FG/CO Series Cone probes
  • FG/CY Series Cylinder probes

Contact us for more information!

selfgrip Self Tightening Grips
  • GF-6 Series, Self-Tightening, 1-inch wide samples (225 lbf, 1 kN)
  • GF-7 Series, Self-Tightening, 3-inch wide samples (225 lbf, 1 kN)
  • TG10 Series, Eccentric Roller, 1-inch samples (225 lbf, 1 kN)
  • TG22 Series, Eccentric Roller, 2-inch samples (225 lbf, 1 kN)
  • TG20 Series, Bollard, 2-inch samples (225 lbf, 1 kN)
  • TG14 Series, Flat Roller, 1-inch samples (450 lbf, 2 kN)

Contact us for more information!

vice Vice Action Grips
  • TG33 Series, Spring-Loaded Tensile Grip (1 lbf, 5 N)
  • GF-53 Series, Miniature Tensile Grip (28 lbf, 125 N)
  • GF-12 Series, Miniature Component Grip (34 lbf, 150 N)
  • TG34 Series, Thick Film Grip (112 lbf, 500 N)
  • GF-1 Series, Manual Vice-Action Grip (225 lbf, 1 kN)
  • TG26 Series, Quick Release Grip (225 lbf, 1 kN)
  • TG74 Series, Adjustable Rear Face Grip (1124 lbf, 5 kN)
  • TG300 Series, Extra Pressure Grip (1124 lbf, 5 kN)

Contact us for more information!

wedge Wedge Action Grips
  • GF-11 Series, Miniature Wedge Grip (112 lbf 500 N)
  • ML1700 Series, Miniature Tensile Grip (450 lbf, 2 kN)
  • GF-9 Series, Universal Wedge Grip (562 lbf, 2.5 kN)
  • TG15 Series, Universal Wedge Grip (1124 lbf, 5 kN)

Contact us for more information!

wire Wire Testing Grips
  • GF-11 Series, Miniature Wedge Grip (112 lbf 500 N)
  • ML1700 Series, Miniature Tensile Grip (450 lbf, 2 kN)
  • GF-9 Series, Universal Wedge Grip (562 lbf, 2.5 kN)
  • TG15 Series, Universal Wedge Grip (1124 lbf, 5 kN)

Contact us for more information!

Lloyd Grips and Fixtures
chuck grips Chuck Grips Capacity: 100N-20kn (22.5 lbf- 4496 lbf)
  • GF-51
  • GF-52
  • TG153
  • TG16
  • TG24

Contact us for more information!

TG112
Coefficient of Friction Fixtures Capacity: 100 N (22.5 lbf)
  • TG112 Fixture

Contact us for more information!

TG167 Collet Grips Capacity: 100 kn (22481l bf)
  • TG167

Contact us for more information!

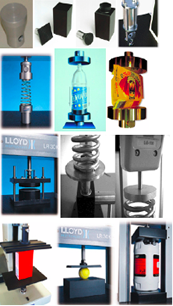

cages Compression Cages and Platens Capacity: 20k, (4496lbf)- 500 N (112.5 lbf)
  • ST6/1, ST6/2, ST6/3, ST6/4, ST6/5, ST6/5, ST6/6
  • TG87
  • TG67
  • TG63
  • TG64
  • TG364
  • TG162
  • 17012
  • 17109
  • TG37
  • TG61
  • TG166
  • TG86
jigs Flexural Jigs Capacity: 250 N (56.25 lbf)- 300 kN  (67443 lbf)
  • GF-54
  • TG18
  • ST15
  • ST29
  • TG62
  • TG362

Contact us for more information!

food

Food and Texture Jigs and Probes There is a wide selection to choose from.

Contact us for more information!

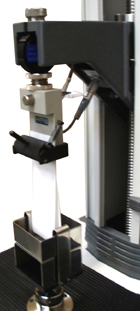

TG4534 Paper Testing Fixtures Capacity: 500 N (112.5 lbf)
  • TG72
  • TG4534

Contact us for more information!

TG113 Peel and Adhesion Fixtures Capacity: 100 N (22.5 lbf)- 5 kN (1124 lbf)
  • TG116
  • TG113
  • TG38
  • TG580
  • GF-8
  • TG136

Contact us for more information!

TG420 Pneumatic Grips Capacity:
500 N (112.5 lbf)- 5kn (1124 lbf)
  • TG420
  • TG412

Contact us for more information!

TG1075 Puncture Test Fixtures Capacity: 500 N (112.4 lbf)
  • TG 1075

Contact us for more information!

TG22 Self Tightening Grips Capacity: 1 kN (225 lbf)-
10 kN (2248 lbf)
  • TG10
  • TG22
  • TG14
  • TG20
  • GF-6
  • GF-7
  • TG210

Contact us for more information!

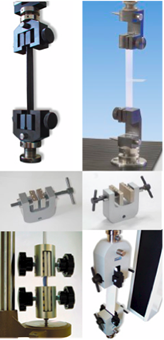

Vice action Vice Action Grips Capacity: 5 N (1.12 lbf)- 20 kN (4496 lbf)
  • TG34
  • TG74
  • TH240G
  • TH240G-S50
  • TH240K
  • TH240K-S20
  • TH240K-S30
  • TH240K-S50
  • GF-53
  • GF-12
  • GF-1
  • TG26
  • TG300
  • TG310
  • TG25
  • TG32

Contact us for more information!

Wedge action Wedge Action Grips Capacity: 500 N (112.5 lbf)- 300 kN( 67443 lbf)
  • GF-11 (ML 4047)
  • ML-1700
  • GF-9
  • TG15
  • TG270
  • TG280
  • TG295
  • TG352

Contact us for more information!

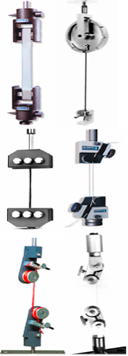

wire, yarn Wire, Yarn, and Webbing Grips Capacity: 5 N (1.12 lbf)- 30 kN (6744 lbf)
  • ML-4244
  • ML-1821
  • ML-1785
  • ML-1949
  • GF-4
  • GF-10
  • GF-3
  • TG11
  • TG12
  • TG32
  • ML-1997
  • GF-5
  • TG23
  • TG65

Contact us for more information!

Special_1 Special Application Grips
  • Peel Fixture for Yoghurt Pot Foil Lids Capacity:500 N (112.5 lbf)
  • Medical Inhaler Fixture Capacity: 5kN
  • Tuft Bind Fixture for Testing Pile Yarn Floor Coverings to ASTM D 1335:1998 Capacity:1 kN (225 lbf)
  • Spaghetti and Pasta Compression Fixture Capacity:100 N (10.2 kgf)
  • 90° and 180° Credit Card Peel Jigs Capacity: 200 N (44.96 lbf)

Contact us for more information!

Special_2 Special Application Grips (cont.)
  • 3 Point Bend Jig for Polystyrene to EN 12089: 1997 Method B Capacity: 1 kN (225 lbf)
  • XY Table for Automated Testing to Evaluate the Performance of Rubber Stoppers on Multiple Glass Phials Capacity: 100 N (22.5 lbf)
  • Bollard Grips for Fiber Optic Testing Capacity: 10 kN (2248 lbf)
  • Adhesion Test Jig for Torque Testing of Super-Glued Nuts and Bolts Capacity: 2.5 kN
  • Peel Fixture for Heat Sealed Plastic Film Covers on Food Containers Capacity: 500 N (112 lbs)

Contact us for more information!

Grips and Attachments Mark-10
Basic Tension/ Compression Grips
hooks Hooks flat Flat Heads
extentionrods Extention Rods chisel Chisel Points
cone Cone Points Vgroove V- Grooves
thread Thread Adapters compression plate Compression Plates
rubber tip Rubber Tips swivel Swivel Adapters
Special Purpose Grips
multi Multi-Jaw Grip 90° Peel Fixture
padded Padded Attachments jacobs force Jacobs Chuck Grip (force)
Bottle and Torque Grips
jacobststm Jacobs Chuck Grips (for TSTM) bottle Bottle Grip
STH Series STH Attachments universal cap Universal Cap Grip
Vice Action Grips
film and paper Film and Paper Grips minicomp Miniature Component Grip
paralleljaw Parallel Jaw Grip
Wedge Action Grips
wedge Wedge Grip miniwedge Miniature Wedge Grip
Other
wire terminal Wire Terminal Grips dual roller Dual Roller Grips
PFPG Pneumatic Film and Paper Grips
Mecmesin
Wedge Grips
500NWG5kNWG Self Tightening Wedge Grips 10kNWG Capstan Action Wedge Grip
Vice Action Grips
LMVG Lightweight Mini Vice Grip LDAVG Large Double- Action Vice Grips
LPG Large Pinch Grip LPGNN Large Pinch Grip (Narrow Nosed)
PG Pinch Grip LSAVG Large Single-Action Vice Grip
SSAVG Small Single Action Vice Grips PJG Parallel Jaw Grip
vice clamp Spring Action Vice Clamp TWPG Two Way Plane Grip
Bollard and Cam Action Grips
CCG Cable Cam Grip- Small HDBG Heavy Duty Belt Grip
LCBG Large Circlar Bollard Grips small bollard Small Circular Bollard Grip
SLEG Spring Loaded Eccentric Grip SLFG Spring Loaded Fold Grip
WG Webbing Grip
Pneumatic Grips
LPPG Large Pneumatic Plane Grips SPPG Small Pneumatic Plane Grip
Compression Testing
CPHG130CPSL100
CPV50
Compression Plates 3PBF 3-Point Bend Fixture 10kN
Fixtures and Accessories
PPWF Pull Peel Wheel Fixture RCR Rotational Crimp Receptacle
PCB Popper Cam Base TH Test Hooks
Special Grips
samgrip_1 SAM-221
  • 10" Clamp Grip
  • Large diamond teeth for soft hard to grip materials

Contact us for more information!

S.A. Meier Company of Milwaukee, Inc.









Quality Sales and Service Since 1932
